XRSB Street Strip Series Methanol Carburetor

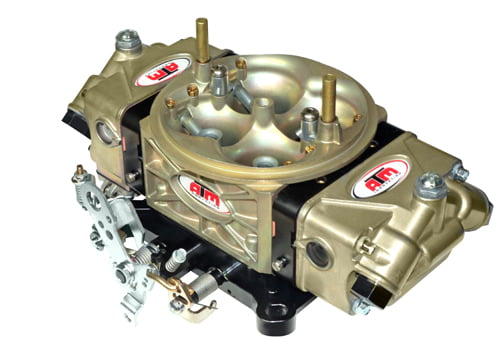

ATM’s Methanol XRSB Series are our most versatile "street/strip" race carburetors with a 4150-style flange and "with vacuum ports". They are the perfect blend of a precision die cast aluminum ATM™ carb body with ATM 2-circuit, 4-emulsion billet metering blocks. Fuel is managed by ATM™ all aluminum dual inlet, dual sight-window fuel bowls and the billet aluminum throttle-bodies have vacuum tubes for vacuum advance and PVC hookups. They are available in 5 sizes from 650cfm to 1050cfm (4150 flange) applications.

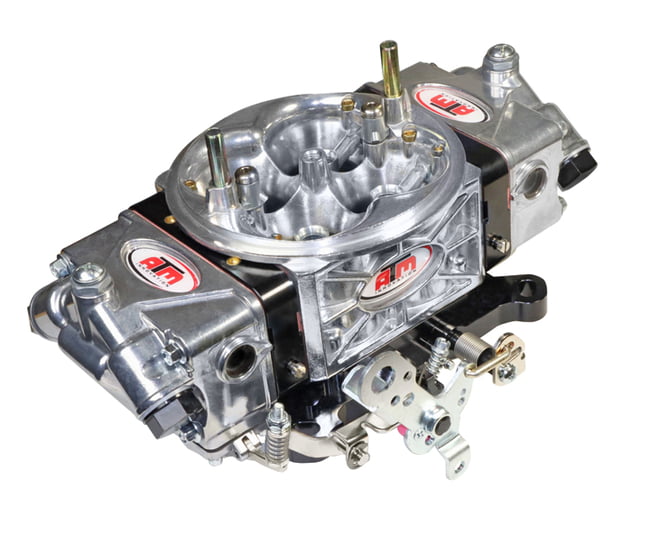

Methanol XRSBs come with a shiny tumbled polish finish and black anodized billet metering blocks and billet throttle-bodies.

Please ensure to submit your custom build sheet for your order.  This will ensure that your carburetor is built correctly for your application. Please submit at: Custom Build Sheet Online Form.

Product Details

XRSB Series

METHANOL

X = cause it's cool

R = Race

S = Street

B = Billet

ATM Innovation’s Methanol XRSB "street/strip" race carburetor is a step up from its XRSC series. While it shares many of the same features with the XRSC, the XRSB is intended for racers that frequently take apart their carburetors for precise tuning changes – the billet metering blocks and billet throttle bodies add another level of durability over die cast components. They also offer more race details like “slabbed” throttle shafts that promote smoother flow and less turbulence.

ATM’s XRSB carbs use the ATM™ die cast aluminum carb body that has a fully contoured high-flow air horn and externally changeable idle- and high-speed air bleeds. When combined with ATM’s 2-circuit, 4-emulsion billet metering blocks with 4-corner idle adjustment, the XRSB becomes one of the most “tuneable” race carbs on the market. These billet metering blocks also have changeable idle fuel and power valve channel restrictions.

Dynamic fuel handling is important in hard-cornering racecars and ATM’s™ all aluminum dual inlet, dual sight-window fuel bowls were designed exactly for this purpose. They are fitted with 7/8”-20 inverted flare fittings for leak-resistant connections.

They are available in 5 sizes from 650-1050 CFM (4150 style).

  • ATM™ die cast aluminum main body w/changeable idle and high-speed air bleeds
  • Billet 2-circuit, 4-emulsion metering blocks add durability for frequent calibration changes
  • Changeable idle and high-speed air bleeds along with changeable idle fuel feed and power valve channel restrictions allow a precision fuel curve for your specific application
  • 4-corner idle adjustment
  • ATM™ all aluminum dual inlet/dual sight-window fuel bowls
  • Billet throttle body w/slabbed throttle shafts
  • 4 Vacuum tubes in throttle body (2 are 3/8" full vacuum, 2 are 1/4", 1 full, 1 timed)

Part #: XRSBA

Price: $816.66
Size CFM:
Finish:
Have you submitted your custom build sheet for your order?:
Quantity:
