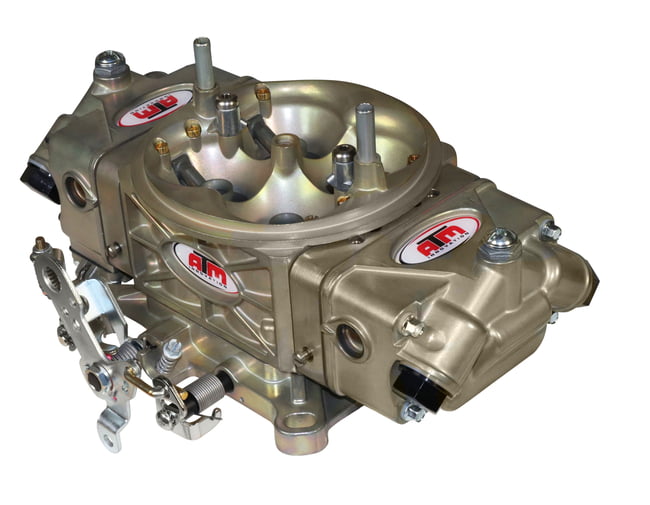

XRSC Street Strip Series E85 Carburetor

ATM’s E85 XRSC Series "street/strip" race carburetors "with vacuum ports" will fulfill the needs of most racers through advanced fuel control from the ATM all aluminum fuel bowls, fully tuneable air bleeds and fuel channel restrictions in the ATM die-cast aluminum carb bodies and metering blocks. The throttle-bodies have vacuum tubes for vacuum advance and PVC hookups. They are available in 5 sizes from 650-1050CFM (4150 flange) applications.

E85 carbs come with a shiny tumbled polished finish.

Please ensure to submit your custom build sheet for your order.  This will ensure that your carburetor is built correctly for your application. Please submit at: Custom Build Sheet Online Form.

Product Details

XRSC Series

E85

X = cause it's cool

R = Race

S = Street

C = Cast

The E85 XRSC Series is ATM Innovation’s most affordable "street/strip" race carb yet. It has all the features of high-end race carburetors – based on quality ATM™ die cast aluminum carb bodies, metering blocks and throttle-bodies. This cost savings over billet components doesn’t hamper performance, and you still get ATM's™ all aluminum dual inlet, dual site-window fuel bowls, changeable idle and high-speed air bleeds and changeable idle feed and power valve channel restrictions providing endless tuning capabilities. The throttle-bodies have vacuum tubes for vacuum advance and PVC hookups. These carburetors are precisely calibrated at the factory and are “race-ready” out of the box requiring minor “trim” adjustments for atmospheric conditions and your individual race combination. They are available in 650, 750, 850, 950 and 1050 CFM sizes for 4150-flange manifolds.

  • 4 Vacuum tubes in throttle body, (2 are 3/8" full vacuum, 2 are 1/4", 1 full, 1 timed)
  • 4-corner idle adjustment
  • ATM die cast aluminum main bodies, metering blocks & throttle-bodies
  • ATM™ all aluminum dual inlet, dual site window fuel bowls with 7/8”-20 inverted flare fittings
  • Changeable idle air & high-speed air bleeds
  • Available in 650, 750, 850, 950 and 1050 CFM sizes (4150 Flange)

Part #: XRSCE

Price: $683.11
Size CFM:
Finish:
Have you submitted your custom build sheet for your order?:
Quantity:
